ABSOLUTE DIGIMATIC HEIGHT GAGE

Absolute Encoder Built-in Height Gage

Features

Slider Feed Wheel
 • Smooth up/down displacement is ensured with the slider feed wheel identical with that of proven double-column height gages.

 Large Clamp Lever
 • This lever provides reliable slider clamp operation.

 Base
 • Novel design of the base well fit to be gripped by hand

 Column
 • Durability and high measuring accuracy are ensured.
 • Increased rigidity: 35 x 15mm (common to all models)
 • Instrumental error of 300mm model: ±0.03mm (±0.04mm in the conventional models)

Built-in ABS (Absolute) Encoder
 • This encoder eliminates the necessity of setting the reference point at every power-on.
 • It has improved reliability because no over-speed error will occur



 Large Liquid Crystal Display
 • Character size: 10 x 3.8mm (9 x 3.5mm in the conventional models)
 • Readable at dark sites and friendly for aged persons

 Output Function Provided

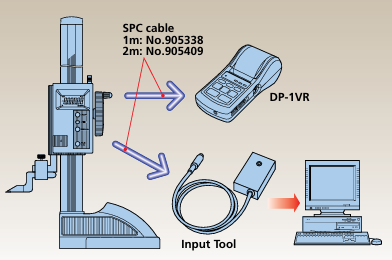

 • Measured data is outputted to the small printer Digimatic Mini Processor DP-1VR (option) or to a per
sonal computer that can be connected to this gage via the input tool (option).






Functions

 • ORIGIN (Absolute Origin) Setting Function
 The surface plate top, etc., can be stored as the absolute origin.

 • ABS (Absolute) Measurement Function
 After power-on, measurement can be started without zero-setting different from the conventional way. Also, the absolute origin position can be changed with the ORIGIN (Absolute Origin) switch.

• INC (Incremental) Measurement Function
 This function allows the origin setup at an arbitrary position in addition to the ABS (Absolute) Measurement Function.In this case turning the power off clears the origin from memory.

 • Hold Function
 A display value can be held as is.

• Output Function
 The output terminals of measured data allow you to establish a statistical process control system or a measurement support system.

• Low Battery Alarm
 This function notifies you of that the battery has significantly been consumed with mark “ ” before the gage is put in a state that it can make no measurement.The timing of battery replacement is recognized beforehand.

Useful Accessories

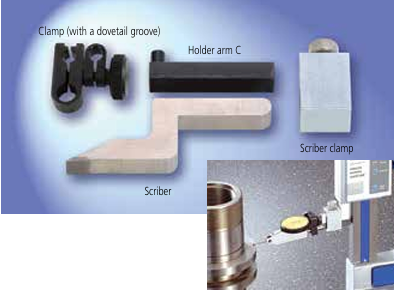

 • Holder arm C which allows a test indicator to be attached to this gage and the clamp (with a dovetail groove) are available as optional accessories. (Refer to specifications.)



• Inch/mm Conversion Key for Order No. 570-312, 570-313 and 570-314.

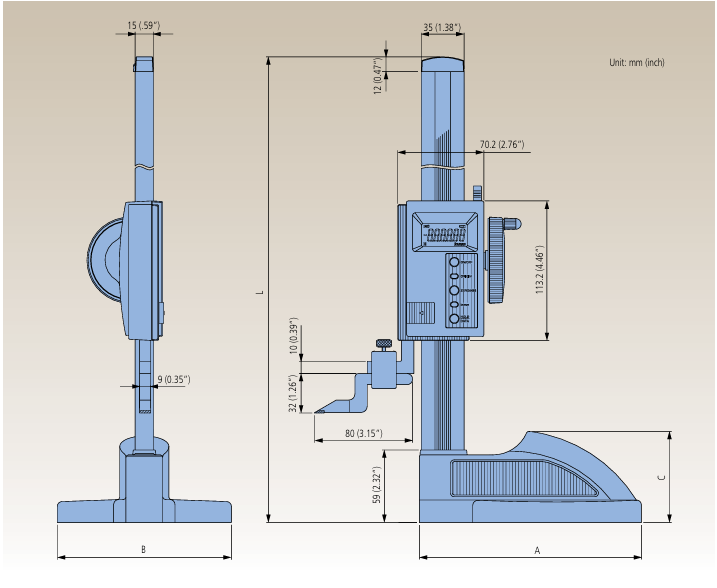

Dimensions
